1.If you are not sure which size you need to order, please Submit Your Question before you purchase, we will make sure to send you correct model and correct size which will fit your tower, and we don't accept returns for this product.

2. If your tower is too narrow to allow the bimini installed underneath, you will need to purchase T bracket for Reborn Tower Bimini to install the bimini above your tower.

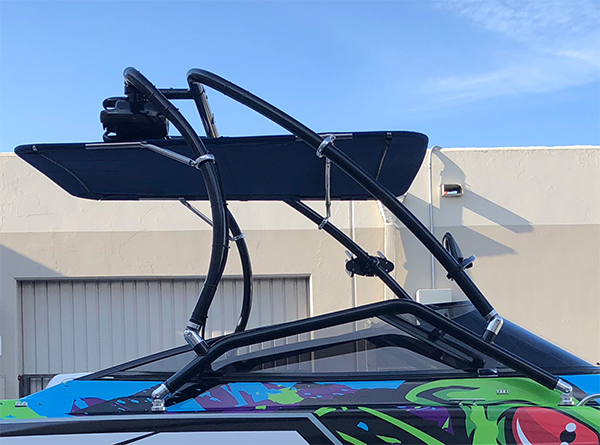

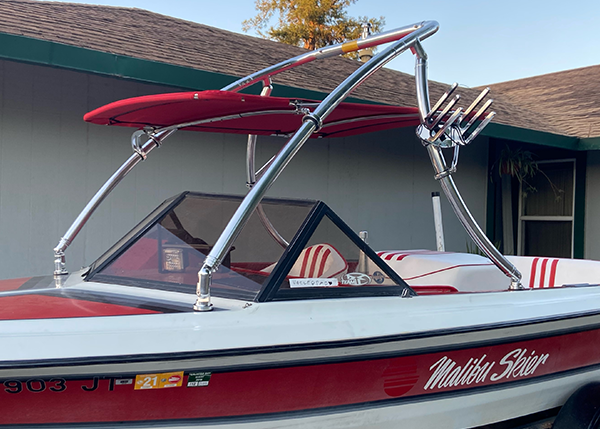

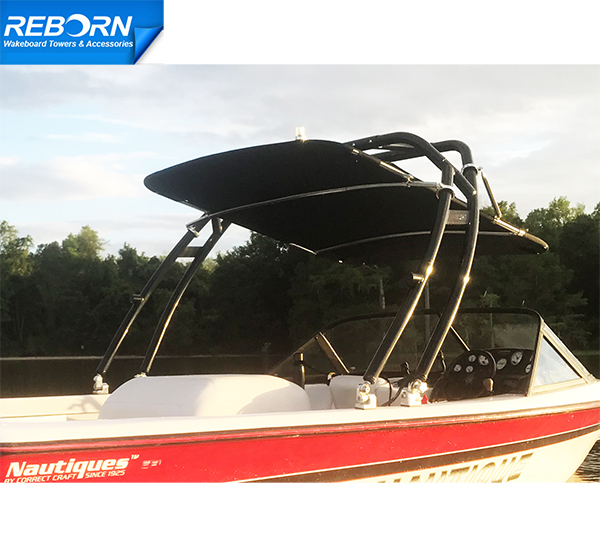

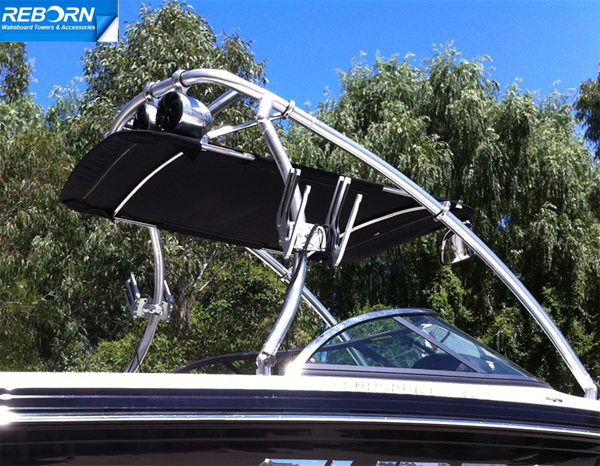

Reborn wakeboard tower bimini is designed to fit most popular Wakeboard Towers on market,

It is fully adjustable it can slide forwards or backwards for minor adjustments.

The support arms can be at the front, rear, above or below for the right attachment required for your tower.

The main cross bar is pin adjustable and will lock in strong between your wake tower legs.

When towing your boat simply remove the cover via zippers and velcro, the frame is left in position.

How to choose the correct size?

Measure across the boat between the front legs and between the rear legs across the boat at the height you would like you bimini to sit.

For this bimini top it needs to be less than 62" and above 53"
Bimini size: 1.35m (W) x 1.9m(L) or 53in(W) x 75in (L)

If less than 53" you can only install the bimini above your tower and
we suggest the large size 1580 for all above installation, please go to the list of Reborn PRO1580 Wakeboard Tower Bimini Top

Clamps 2.5 inch, 2.25 inch and 2 inch tower leg outside diameters.

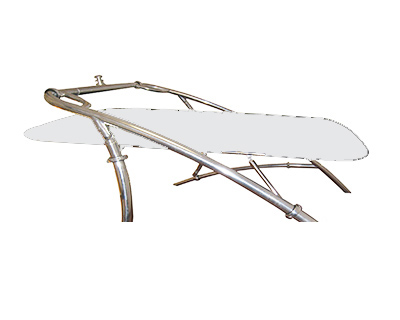

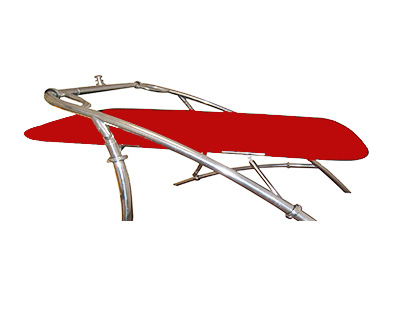

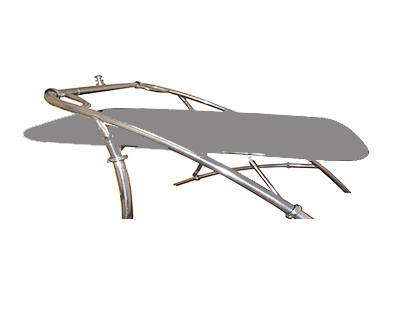

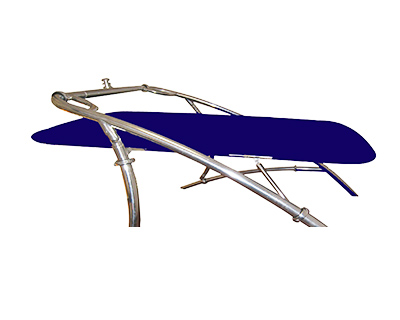

Available canopy color: navy blue/ pacific blue/ jockey red/ beige/ grey

Note: Please choose your favorite color by adding color option into your cart, or we will ship the black canopy as default color.

Tower Bimini Installation Guide
